40 x 48 Rackable Pallet GMA
Overview
The Rehrig Pacific 40 x 48 Rackable Pallet GMA delivers a reliable, efficient solution for industries that need consistent strength with a lightweight design. Built to GMA specifications, this pallet is ideal for warehouse racking, distribution centers, and high-volume supply chain operations.
From retail distribution to food & beverage logistics, the 40 x 48 Rackable Pallet GMA provides a dependable, reusable solution that supports modern supply chain efficiency.
Product Specifications
Product Details

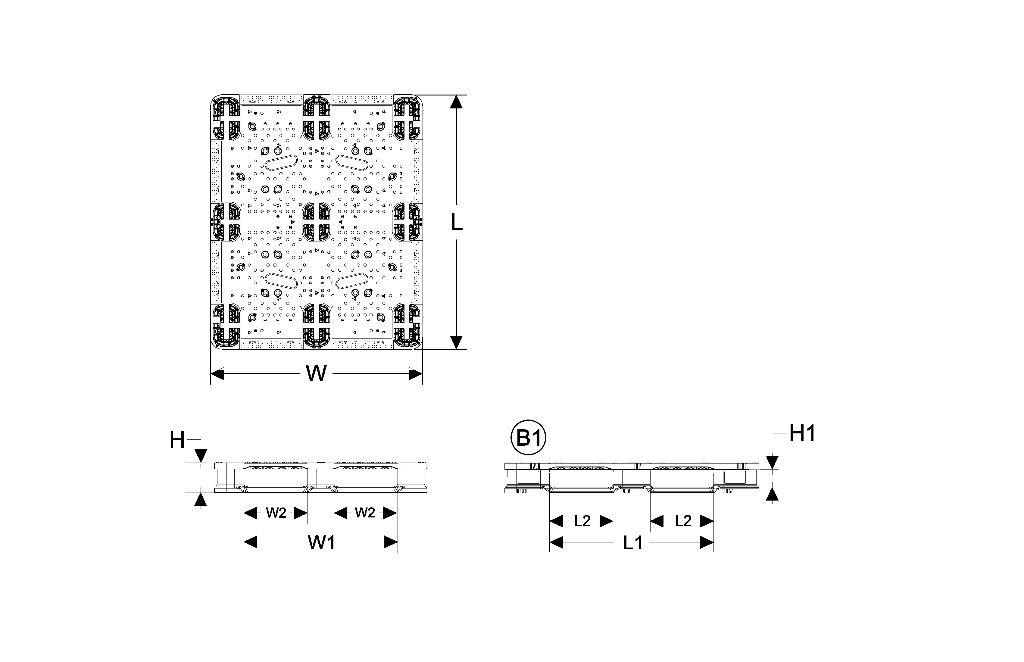

| Specifications | IN/LB | MM/KG |
|---|---|---|
| Length (L) | 48.0 | 1,219 |
| Width (W) | 40.0 | 1,016 |
| Height (H) | 5.62 | 142.8 |
| Overall Fork Pocket Width (W1) | 29.0 | 737 |
| Individual Fork Pocket Width (W2) | 12.0 | 305 |
| Overall Fork Pocket Length (L1) | 31.0 | 788 |
| Individual Fork Pocket Length (L2) | 12.0 | 305 |
| Fork Pocket Height (H1) | 3.4 | 86.3 |
| Height w/lip (H2) | 6.0 | 152.4 |
| Weight (W1) (non-reinforced) | 45.0 | 20.4 |
| Static Load Rating | 12,000 | 5,450 |
| Dynamic Load Rating | 4,800-6,400 | 2,180-2,900 |
| Rack Load Rating | 2,400-3,200 | 1,090-1,450 |
| 53' Trailer Quantity | 570 | |
| Decoration Areas | WIDTH (IN) | HEIGHT (IN) |
|---|---|---|
| Brand, Barcode or RFID Area (B1) | 4.0 | 2.4 |
- Manufactured from PP or HDPE using high pressure injection molding creating superior strength.
- Metal reinforcements provide superior edge racking capabilities and excellent impact resistance.
- Designed with large fork opening to minimize damage and provide excellent impact resistance.
- Cruciform bottom structure enhancing performance over all kind of conveyors.
- Two-piece snap lock “leg in leg” design allows for quick and easy repair.
- Ergonomic handles eliminate dangerous and awkward pallet handling
- Easy to clean, doesn't not absorb moisture or proliferate bacteria.
- Molded-in top deck texture reduces case slippage.
Options
- Colors: wide variety of colors available
- Decorations: can be hot stamped with your company’s logo for added inventory control and brand awareness, multi-color logos optional
- Optional perimeter lip available for added load stability and better alignment when stored
- Bar code or RFID capable
- Grommets available
